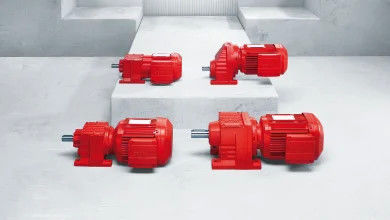

Inline Helical Variable Speed Gear Reduction Motor Gearbox 160KW
  • Inline Helical Variable Speed Gear Reduction Motor Gearbox 160KW
  • Inline Helical Variable Speed Gear Reduction Motor Gearbox 160KW
  • Inline Helical Variable Speed Gear Reduction Motor Gearbox 160KW
  • Inline Helical Variable Speed Gear Reduction Motor Gearbox 160KW

Inline Helical Variable Speed Gear Reduction Motor Gearbox 160KW

Place of Origin CHINA
Brand Name SEW eurodirve
Certification CE/3C
Model Number R07-R157:0.09kw-200kw
Product Details
Gear Unit Ratio:
3.21 – 289.74
Double Gear Unit Reduction Ratio:
90 – 27 001
Max. Output Torque:
50 – 18 000Nm
Motor Power Range (Mounting Via AM Motor Adapter):
0.09 – 160KW
Highlight:

Helical variable speed gear reduction motor

,

160KW variable speed gear reduction motor

,

Helical inline gear reduction box

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD 100 PER SET
Packaging Details
export standard packing
Delivery Time
3-5 WORK DAYS
Payment Terms
T/T, Western Union
Supply Ability
1000000 pieces/year
Product Description

What is a gear unit?



How does a gear unit work?

Based on the design, size, and gear unit stages, a gear unit transforms the speed of a motor into steps up or steps down. The resulting speed ratio i between the input speed and output speed is therefore one of the most important characteristic values of a gear unit. How powerful a gear unit is and the loads that it can convey depends on its maximum torque, measured in the physical unit newton meters [Nm].



What types of gear unit are available?

Gear units are distinguished by the type of force flow that they transmit. As a result, there are three basic designs: Parallel-shaft gear units, right-angle gear units, and planetary gear units.

In parallel-shaft gear units and planetary gear units, the input and output shaft are positioned in one direction (on the same level). The power is therefore transmitted in a straight line. Parallel-shaft gear units are available in a helical gear unit or parallel-shaft helical gear unit mounting position.

Planetary gear units are a special form. With them, the power transmission is coaxial. In this case, the speed and torque of the input shaft – the central sun gear – are transmitted to an external annulus gear (on the output side) and transformed by three or more rotating planet gears. Their special feature: The input shaft and output shaft move in the same direction throughout this process. In combination with a servomotor planetary servo gearmotors provide particularly high dynamics and precision.

In right-angle gear units, in contrast, the drive shaft and output shaft are perpendicular to each other – with the result that the flow of force there is diverted at a right angle. There are three established versions of right-angle gear units. They include helical-bevel gear units, helical-worm gear units, and, exclusively from SEW‑EURODRIVE, the SPIROPLAN® right-angle gear unit.



What we offer: The right gear unit for every application from our modular system



Standard gear unit


Standard gear unit

Do you need robust and reliable gear units for your production and logistics? If so, our standard gear units are your perfect solution. Choose between a variety of gear unit types in a huge number of sizes and with a maximum torque of up to 50,000 Nm. You can choose from:



Servo gear units

Servo gear units

Does your application need powerful dynamics and high precision? Then our servo gearmotors are your ideal choice: Here too, you can use our modular system to combine a huge number of SEW gear units and motors to configure your own custom servo gearmotor. What we offer:

Stainless steel gear units


Stainless steel gear units

In cleaning-intensive hygiene areas of the food and drinks industry, gear units often come into contact with aggressive acids and alkalines. Our stainless steel gear units are robust, durable, and low-maintenance and specially tailored to such applications. The high-quality stainless steel housing with surfaces optimized for cleaning make this gear unit resistant to chemicals and dirt.



Explosion-proof gear units

SEW image

If plants and machines are exposed to environments with air and gas or air and dust mixtures due to the type of production involved, the strictest explosion protection regulations are applicable worldwide due to this hazard. Naturally, they also apply to the drive technology in question. With that in mind, most of our standard gear units and servo gear units are available in an explosion-proof design – which conforms with the most important regulations and standards for the global market, from ATEX to IECEx to HazLoc-NA®.

R series (two and three stages)



Sizes 07 / 17 / 27 / 37 / 47 / 57 / 67 / 77 / 87 / 97 / 107 / 127 / 137 / 147 / 167

Gear unit ratio i 3.21 – 289.74
Double gear unit reduction ratio i 90 – 27 001
Max. output torque Nm 50 – 18 000*
Motor power range (Mounting via AM motor adapter) kW 0.09 – 160





Inline Helical Variable Speed Gear Reduction Motor Gearbox 160KW 4

FAQ

Q: Can you print other colors?
A:Yes. Customized color can be printed on the gear motor according to your requirements.

Q: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to accept trial order for quality testing.

Q:How to choose a gearbox which meets your requirement?
A:You can refer to our catalogue to choose the gearbox or we can help to choose when you provide
the technical information of required output torque, output speed and motor parameter etc.

Q: What information shall we give before placing a purchase order?
A:a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor informationetc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.

Q: Is that factory price?
A:Yes. We assure you all prices are based on factory.

Q: What is the life span? what is the guarantee
A:The lifespan of gear motor can reach 10-20 years depending on different working conditions .The guarantee time is one year after delivery.

Q: What documents are available?
A:A full range documents including structural drawings, packing list, installation manual and relative certificates can be provided. Moreover, customs declaration is provided. We provide one-stop service for you.

Q: Is it able to customized?
A:yes, we could re-design and produce the gear motor as your requirements if the quantity is large.
