High Efficiency Helical Bevel Motor Gear Unit 380/660V 50HZ 7.5KW
  • High Efficiency Helical Bevel Motor Gear Unit 380/660V 50HZ 7.5KW
  • High Efficiency Helical Bevel Motor Gear Unit 380/660V 50HZ 7.5KW
  • High Efficiency Helical Bevel Motor Gear Unit 380/660V 50HZ 7.5KW
  • High Efficiency Helical Bevel Motor Gear Unit 380/660V 50HZ 7.5KW

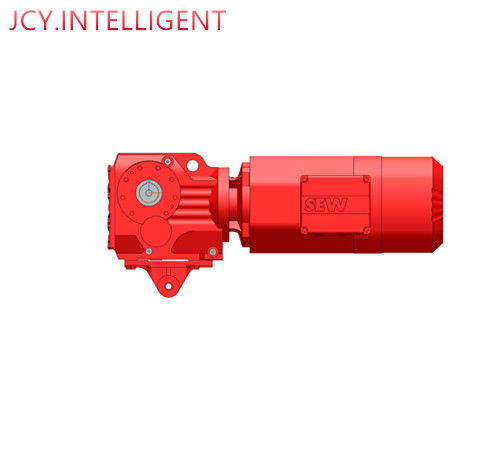

High Efficiency Helical Bevel Motor Gear Unit 380/660V 50HZ 7.5KW

Place of Origin CHINA
Brand Name SEW
Certification CE/3C
Model Number KA77/TDRN132M4BE11
Product Details
Rated Motor Speed:
1468
Output Speed:
29.27
Motor Voltage:
380/660V
Output Torque:
1420Nm
Motor Power:
7.5
Hollow Shaft:
50mm
Design Type:
Hollow Shaft
Highlight:

660V Motor Gear Unit

,

Helical Bevel Motor Gear Unit

,

Helical 380 660v motor

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Discussed
Packaging Details
Standard wooden packing
Delivery Time
5-7works day
Payment Terms
T/T, Western Union
Supply Ability
1000000 pieces/year
Product Description

Parallel-shaft gearmotors


The parallel-shaft gearmotors of the series F..DR.. are perfect for all your design-related applications where you rely on space-saving components. They provide optimum installation conditions thanks to their slim design.

High-torque drive: Parallel-shaft helical gear unit and performance-optimized AC motor



Parallel-shaft gearmotors F..DR..
Parallel-shaft gearmotors F..DR..
Space-optimized drive solutions are sought by you specifically in conveyor and process engineering. This is because your system architecture often only offers limited space for drive technology.

We offer you our parallel-shaft gearmotors of the series F..DR... for these applications. Use this structural advantage and benefit from the remarkably slim design of our parallel-shaft gearmotors F..DR...

Thanks to our modular concept, which allows for combining gear units and motors as needed, we can easily meet individual and application-specific requirements and in this way implement optimal solutions for you.

A high degree of flexibility is offered to you by the parallel-shaft gearmotors of the series F..DR.. and by the solid or hollow shaft design options in this series. Our entire spectrum of AC asynchronous motors is available to you when selecting the motor.

In this way, you combine space-saving design with force, dynamics and reliability for a powerful parallel-shaft gearmotor.
Save time and money
By opting for one of our gearm
otors, you are already saving time and money with this selection and project planning. This is because our modular system enables a multitude of combination options for gear units and motors. You can therefore reduce operating costs, count on a long service life and benefit from simplified maintenance that is characteristic of our brand.





Parallel-shaft helical geared motors of series F

with 4-pole DRN motor/IE3:

Gear unit Motor
Gear unit size Mamax Gear unit
Nm
Size Power
kW
27 130 80M4 – 100L4 0.75 – 3.0
37 200 80M4 – 100L4 0.75 – 3.0
47 400 80M4 – 100L4 0.75 – 3.0
57 600 80M4 – 132M4 0.75 – 7.5
67 820 80M4 – 132M4 0.75 – 7.5
77 1500 80M4 – 160L4 0.75 – 15
87 3000 80M4 – 200L4 0.75 – 30
97 4300 80M4 – 225S4 0.75 – 37
107 7840 100LS4 – 250M4 2.2 – 55
127 12000 132S4 – 280M4 5.5 – 90
157 18000 132L4 – 315H4 9.2 – 200

Technical data





Rated motor speed [1/min] 1468
Output speed [1/min] 50
Overall gear ratio 29.27
Output torque [Nm] 1420
Service factor SEW-FB 1.10
Mounting position M1-M5A (15°)
Base / top coat 7031 Blue gray (51370310)
Position of connector/terminal box [°] 0
Cable entry/connector position X
Hollow shaft [mm] 50
Design type Hollow shaft
Permitted output overhung load with n=1400 [N] 4170
Lubricant quantity 1st gear unit [Liter] 2.5
Motor power [kW] 7.5
Duration factor S1-100%
Efficiency class GR3
Efficiency (50/75/100% Pn) [%] 90.8 / 91.1 / 90.4
CE mark YES
Motor voltage [V] 400/690
Wiring diagram R13
Frequency [Hz] 50
Rated current [A] 15.2 / 8.8
Cos Phi 0.78
Thermal class 155(F)
Motor protection type IP55
Design requirement IEC60034 (without CE)
Mass moments of inertia (referring to the input side) [10⁻⁴ kgm²] 402.90
Weight [kg] 144.70
Braking torque [Nm] 110
Brake voltage [V] 400
Brake control BGE1.5





FAQ

Q: Can you print other colors?
A:Yes. Customized color can be printed on the gear motor according to your requirements.

Q: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to accept trial order for quality testing.

Q:How to choose a gearbox which meets your requirement?
A:You can refer to our catalogue to choose the gearbox or we can help to choose when you provide
the technical information of required output torque, output speed and motor parameter etc.

Q: What information shall we give before placing a purchase order?
A:a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor informationetc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.

Q: Is that factory price?
A:Yes. We assure you all prices are based on factory.

Q: What is the life span? what is the guarantee
A:The lifespan of gear motor can reach 10-20 years depending on different working conditions .The guarantee time is one year after delivery.

Q: What documents are available?
A:A full range documents including structural drawings, packing list, installation manual and relative certificates can be provided. Moreover, customs declaration is provided. We provide one-stop service for you.

Q: Is it able to customized?
A:yes, we could re-design and produce the gear motor as your requirements if the quantity is large.
