Motor Gear Unit
>
|
| Place of Origin | CHINA |
| Brand Name | SEW |
| Certification | CE/3C |
| Model Number | FAF57DRN100LS4BE5HF/TF |

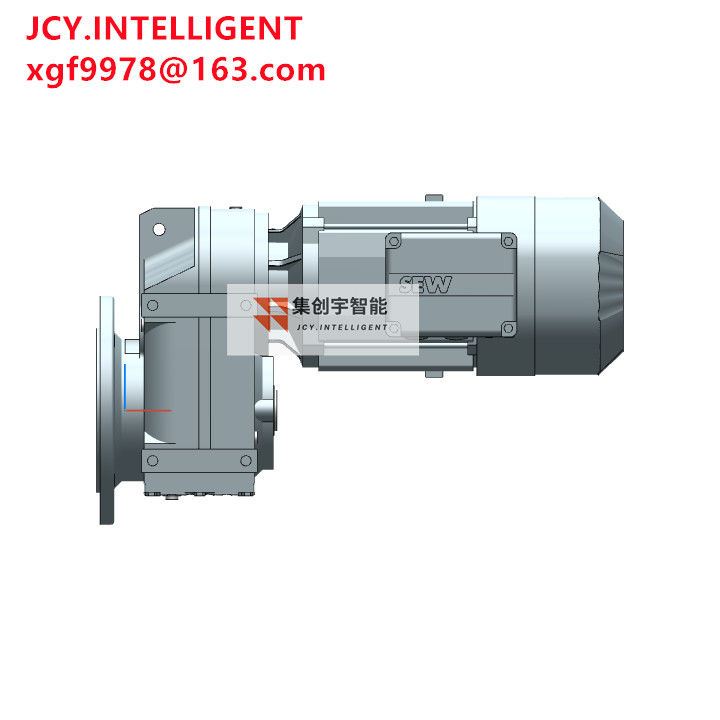

▶▶▶Description:
Parallel-shaft gearmotors
The parallel-shaft gearmotors of the series F..DR.. are perfect for all your design-related applications where you rely on space-saving components. They provide optimum installation conditions thanks to their slim design.
| F series Parallel-shaft gearmotors ✪●✪ Product size&Technical data | ||||||
| Gear unit size | F27 | F37 | F47 | F57 | F67 | F77 |
| Motor Power(KW) | 0.12-3 | 0.12-3 | 0.12-3 | 0.12-7.5 | 0.12-7.5 | 0.12-15 |
| gear ratio range | 4.16-140.74 | 3.77-128.51 | 4.99-190.76 | 5.18-199.70 | 3.97-228.99 | 4.28-130.42 |
| Mamax Gear unit(Nm) | 130 | 200 | 400 | 600 | 820 | 1500 |
| Gear unit size | F87 | F97 | F107 | F127 | F157 | |
| Motor Power(KW) | 0.25-30 | 0.75-37 | 2.2-55 | 5.5-90 | 9.2-200 | |
| gear ratio range | 4.12-270.68 | 3.87-102.16 | 5.03-254.4 | 4.66-170.83 | 11.92-267.43 | |
| Mamax Gear unit(Nm) | 3000 | 4300 | 7840 | 12000 | 20000 | |
| Catalog designation | FAF57DRN100LS4BE5HF/TF |
| Product | Parallel-shaft helical gearmotors F..DRN.. (IE3) |
| Rated motor speed [1/min] | 1450 |
| Output speed [1/min] | 32 |
| Overall gear ratio | 44.73 |
| Output torque [Nm] | 645 |
| Service factor SEW-FB | 1.10 |
| Mounting position | M1 |
| Base / top coat | 7031 Blue gray (51370310) |
| Position of connector/terminal box [°] | 0 |
| Cable entry/connector position | X |
| Hollow shaft [mm] | 40 |
| Design type | B5 flange-mounted design with hollow shaft |
| Permitted output overhung load with n=1400 [N] | 6440 |
| Lubricant quantity 1st gear unit [Liter] | 2.3 |
| Flange diameter [mm] | 250 |
| Flange | 250 |
| Motor power [kW] | 2.2 |
| Duration factor | S1-100% |
| Efficiency class | GR3 |
| Efficiency (50/75/100% Pn) [%] | 86.4 / 87.5 / 86.9 |
| Motor voltage [V] | 230/400 |
| Wiring diagram | R13 |
| Frequency [Hz] | 50 |
| Rated current [A] | 8.3 / 4.75 |
| Cos Phi | 0.76 |
| Thermal class | 155(F) |
| Motor protection type | IP55 |
| Mass moments of inertia (referring to the input side) [10⁻⁴ kgm²] | 87.40 |
| Weight [kg] | 62.90 |
| Braking torque [Nm] | 28 |
| Brake voltage [V] | 230 |
| Brake control | BGE1.5 |
▶▶▶Features
Parallel-shaft helical gear units
•Slim design for limited installation space
•Also available with reduced backlash
•Available variants:
•Foot- or flange-mounted
•B5 or B14 flange-mounted
•Solid or hollow shaft
•Hollow shaft with keyed connection, shrink disk, splined hollow shaft, or TorqLOC®
▶▶▶ SEW reducer F series Parallel-shaft gearmotors
Simple, slim shape, hollow or solid shaft, flange, footing or torque arm mounting
Transmission efficiency up to 98%, low vibration, low noise
out speed (rpm): 0.1rpm - 752 rpm
Torque range(Nm)/Power range(KW): 130Nm - 18,000 Nm/ 0.12KW - 200 kW
FV type:FV27,FV37,FV47,FV57,FV67,FV77,FV87,FV97,FV107,FV127,FV157
FHF type:FHF27,FHF37,FHF47,FHF57,FHF67,FHF77,FHF87,FHF97,FHF107,FHF127,FHF157
FVF type:FVF27,FVF37,FVF47,FVF57,FVF67,FVF77,FVF87,FVF97,FVF107,FVF127,FVF157
FAF type:FAF27,FAF37,FAF47,FAF57,FAF67,FAF77,FAF87,FAF97,FAF107,FAF127,FAF157
▶▶▶FAQ
Q: What is the life span? what is the guarantee
A:The lifespan of gear motor can reach 10-20 years depending on different working conditions .The guarantee time is one year after delivery.
Q: What documents are available?
A:A full range documents including structural drawings, packing list, installation manual and relative certificates can be provided. Moreover, customs declaration is provided. We provide one-stop service for you.
Q: Is it able to customized?
A:yes, we could re-design and produce the gear motor as your requirements if the quantity is large.
