Helical Gear Reducer
>
|
| Place of Origin | CHINA |
| Brand Name | SEW |
| Certification | CE/3C |

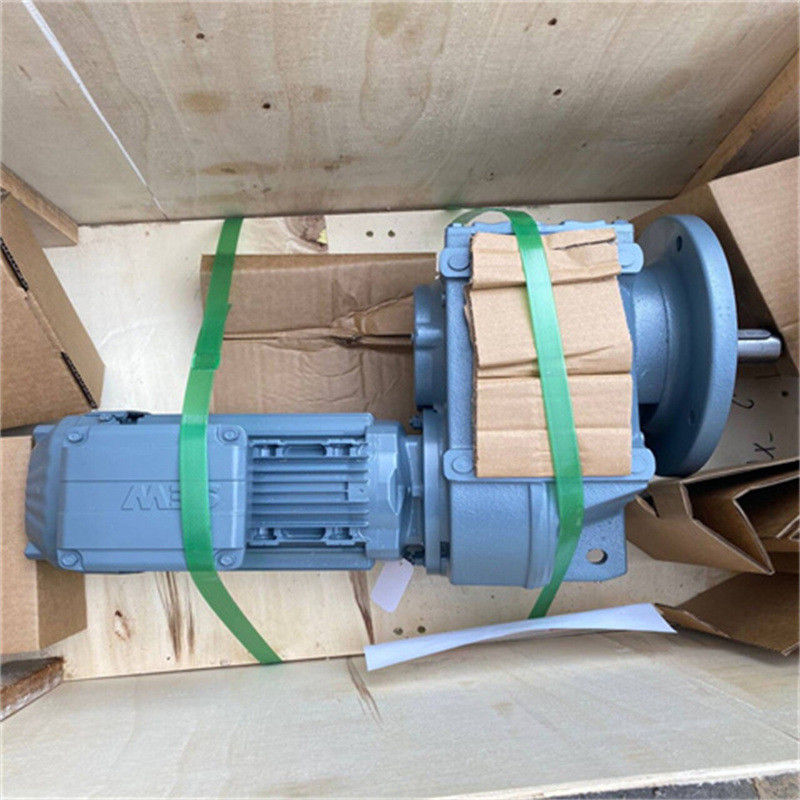

| Model Number | FAF67 DRN100L4 |
▶▶▶Description:
Parallel-shaft gearmotors
The parallel-shaft gearmotors of the series F..DR.. are perfect for all your design-related applications where you rely on space-saving components. They provide optimum installation conditions thanks to their slim design.
High-torque drive: Parallel-shaft helical gear unit and performance-optimized AC motor
▶▶▶Features
Parallel-shaft helical gear units
•Slim design for limited installation space
•Also available with reduced backlash
•Available variants:
•Foot- or flange-mounted
•B5 or B14 flange-mounted
•Solid or hollow shaft
•Hollow shaft with keyed connection, shrink disk, splined hollow shaft, or TorqLOC®
Product data:
| Catalog designation | FAF67 DRN100L4 |
| Product | Parallel-shaft helical gearmotors F..DRN.. (IE3) |
| Product data | |
| Speed 50Hz [r/min] | 1456 / 37 |
| Total ratio [i] | 39,26 |
| Ma max [Nm] | 780 |
| Output torque 50Hz [Nm] | 775 |
| Service factor SEW-FB | 1,00 |
| Mounting position | M4 |
| ISO code | CLP 220 |
| Lubricant type | Miner.Oil |
| Lubricant volume [l] | 3,70 |
| Motor power [kW] | 3 |
| Motor frequency [Hz] | 50 |
| Cyclic duration factor S1-S10 | S1 |
| Voltage range [V] | 220-230 delta/380-400 star |
| Nominal current [A] | 11,50 / 6,60 |
| cos phi | 0,76 |
| Thermal cl.[°C]/Enclosure[IP] | 155(F) / 55 |
| International efficiency class | IE3 |
| Efficiency (100% Pn) [%] | 87,8 |
| Design specification | IEC 60034 |
| K.V.A.code | L |
| China Efficiency Class | Grade 3 |
| Ambient temperature min. [°C] | -20 |
| Ambient temperature max. [°C] | 40 |
| Nameplate | English |
| Weight | 70.00 kg |
▶▶▶Areas of application
◆Materials handling applications ◆Chain conveyors ◆Process applications
◆Presses ◆ Extruders ◆Screw conveyors
◆Gantry cranes
▶▶▶ SEW reducer F series
Simple, slim shape, hollow or solid shaft, flange, footing or torque arm mounting
Transmission efficiency up to 98%, low vibration, low noise
out speed (rpm): 0.1rpm - 752 rpm
Torque range(Nm)/Power range(KW): 130Nm - 18,000 Nm/ 0.12KW - 200 kW
F type:F27,F37,F47,F57,F67,F77,F87,F97,F107,F127,F157
FA type:FA27,FA37,FA47,FA57,FA67,FA77,FA87,FA97,FA107,FA127,FA157
FF type:FF27,FF37,FF47,FF57,FF67,FF77,FF87,FF97,FF107,FF127,FF157
FV type:FV27,FV37,FV47,FV57,FV67,FV77,FV87,FV97,FV107,FV127,FV157
FHF type:FHF27,FHF37,FHF47,FHF57,FHF67,FHF77,FHF87,FHF97,FHF107,FHF127,FHF157
FVF type:FVF27,FVF37,FVF47,FVF57,FVF67,FVF77,FVF87,FVF97,FVF107,FVF127,FVF157
FAF type:FAF27,FAF37,FAF47,FAF57,FAF67,FAF77,FAF87,FAF97,FAF107,FAF127,FAF157
FA-B type:FA27B,FA37B,FA47B,FA57B,FA67B,FA77B,FA87B,FA97B,FA107B,FA127B,FA157B
FH-B type:FH27B,FH37B,FH47B,FH57B,FH67B,FH77B,FH87B,FH97B,FH107B,FH127B,FH157B
FV-B type:FV27B,FV37B,FV47B,FV57B,FV67B,FV77B,FV87B,FV97B,FV107B,FV127B,FV157B
▶▶▶FAQ
Q: What is the life span? what is the guarantee
A:The lifespan of gear motor can reach 10-20 years depending on different working conditions .The guarantee time is one year after delivery.
Q: What documents are available?
A:A full range documents including structural drawings, packing list, installation manual and relative certificates can be provided. Moreover, customs declaration is provided. We provide one-stop service for you.
