Helical Gear Unit
>
|
| Place of Origin | China |
| Brand Name | SEW |
| Certification | CE、3C |

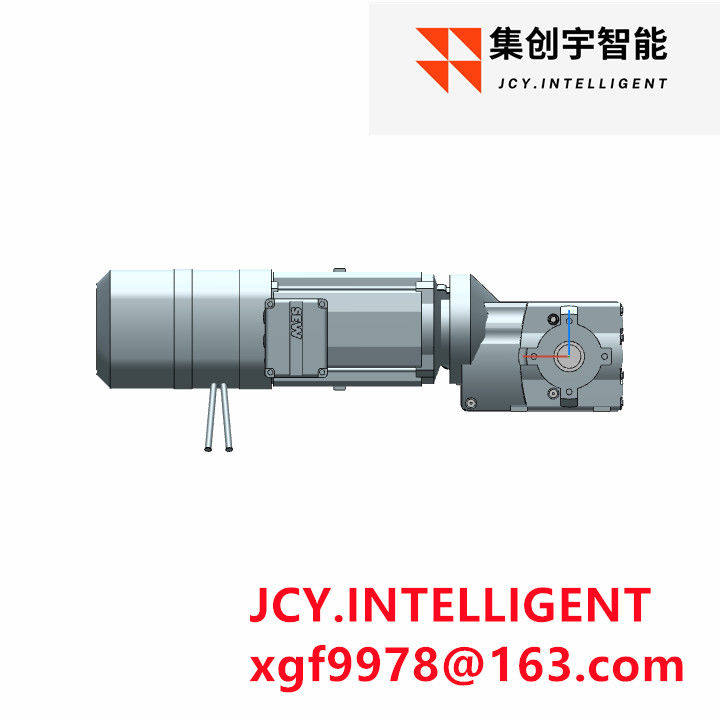

| Model Number | KA49 DRN132S4/BE11HR/TH/ES7C |
The Helical Gear Unit is a type of gear unit that is commonly used in various industrial applications. It is designed to provide efficient and smooth power transmission, while also reducing the speed of the input shaft. This product is made of high-quality steel, ensuring durability and reliability in any operating condition.
The Helical Gear Unit is made of strong and sturdy steel, which provides high strength and resistance to wear and tear. This material also makes the gear unit capable of handling heavy loads and harsh environments, making it suitable for a wide range of industrial applications.
The Helical Gear Unit features a bevel gearing arrangement, which is designed to transmit power between intersecting shafts. This arrangement allows for smooth and efficient power transmission, making it ideal for applications that require high torque and precision.
The Helical Gear Unit is designed to operate with low noise levels, making it suitable for applications that require a quiet working environment. This is achieved through the use of precision machining and high-quality materials, resulting in a smooth and silent operation.
The Helical Gear Unit can be mounted in either a horizontal or vertical position, making it versatile and adaptable to different installation requirements. This allows for flexibility in design and installation, making it suitable for various industrial settings.
The Helical Gear Unit can be lubricated either through an oil bath or forced lubrication system. This ensures proper lubrication of the gears and bearings, which is crucial for maintaining the efficiency and longevity of the gear unit.
The Helical Gear Unit is a reliable and efficient choice for various industrial applications. Its high-quality construction, low noise level, and versatile mounting options make it a popular choice among industries that require smooth and precise power transmission. Choose the Helical Gear Unit for your next project and experience its superior performance and durability.
The helical-bevel gear units offered by our company are available in two and three stages and feature a range of impressive qualities. These gear units are known for their high efficiency, ensuring minimal energy loss during operation. Additionally, their gearing boasts high fatigue strength, ensuring reliable performance and durability. Our gear units also have a long, maintenance-free service life, providing customers with peace of mind. To further enhance their performance, these gear units can be combined with our complete motor portfolio.
Sizes K..37 to K..187 (three stages) are available, along with double gear units for very low output speeds. Our reduced backlash variant is also popular among customers. We offer a variety of mounting options, including foot- or flange-mounted, B5 or B14 flange-mounted, and solid or hollow shaft options. Customers can also choose between a hollow shaft with keyed connection, shrink disk, splined hollow shaft, or our innovative TorqLOC® mounting system.
Sizes K..19 to K..49 (two stages) are also available with the same high-quality design. These gear units boast a low-loss, two-stage design with a high gearing efficiency of over 90%. The aluminum housing of sizes K..19 and K..29 makes them particularly lightweight and easy to handle. On the other hand, sizes K..39 and K..49 have a sturdy and torsionally stiff gray-cast iron housing, ensuring reliable and stable performance. Three base strips are also incorporated into the design to ensure an optimal connection to the customer's machine, even in critical mounting situations.
Similar to the three-stage gear units, our two-stage units also offer a range of mounting options, including foot- or B5 flange-mounted, and solid or hollow shaft options. Customers can choose between a hollow shaft with keyed connection, shrink disk, or the TorqLOC® hollow shaft mounting system for their specific needs. With our helical-bevel gear units, customers can trust in their high-quality design, efficient performance, and reliable service life.
| Parameter | Value |
|---|---|
| Type | KA49 DRN132S4/BE11HR/TH/ES7C |
| Gearing Arrangement | Bevel |
| Lubrication | Oil Bath or Forced Lubrication |
| Noise Level | Low |
| Output Speed | Dependent on Input Speed and Ratio |
| Mounting Position | Horizontal or Vertical |
| Manufacturer | Various Manufacturers Available |
| Ratio Range | 4.5-75.2 |
| Material | Steel |
| Product Keywords | Bevel Helical Gear Drives, Helical Drive Gearboxes, Inline Helical Gearboxes |
The Helical Gear Unit from SEW, model KA49 DRN132S4/BE11HR/TH/ES7C, is a high-quality industrial gearbox that is designed to provide efficient and reliable power transmission in various applications. Made from high-quality steel, this gear unit is durable and able to withstand heavy loads, making it suitable for use in a wide range of industries.
The Helical Gear Unit is a type of gearbox that is used to transmit power from one rotating shaft to another. It is designed with helical gears, which are cut at an angle to the shaft, allowing for smoother and quieter operation compared to other types of gears. This particular model from SEW is available in various sizes and configurations to suit different application requirements.
The Helical Gear Unit is suitable for a wide range of applications, including:
These gear units can be used in industries such as:
The Helical Gear Unit from SEW is a reliable and efficient industrial gearbox that is suitable for a wide range of applications. With its high-quality construction, smooth operation, and various configurations available, it is a popular choice for many industries. Contact SEW today to discuss your specific requirements and find the perfect Helical Gear Unit for your needs.
