| Place of Origin | CHINA |
| Brand Name | SEW |
| Certification | CE/3C |
| Model Number | 19.3 |
▶▶▶Description:
Helical-bevel gearmotors
Our helical-bevel gearmotors K..DR.. are an excellent choice for many applications that require compact drives with high efficiency. As they are especially low-maintenance they will reduce your costs in day-to-day operation.
Helical-bevel gearmotors: low-maintenance and high efficiency
The helical and bevel gear reduction motor is a Helical-bevel shaft reduction motor suitable for high-torque, wear-resistant applications. Low backlash helical - bevel gear reducers can be used for precise positioning control
| K series Helical-bevel gearmotors ✪●✪ Product size&Technical data | ||||||
| Gear unit size | K37 | K47 | K57 | K67 | K77 | K87 |
| Motor Power(KW) | 0.12-3 | 0.12-3 | 0.12-7.5 | 0.12-7.5 | 0.12-15 | 0.25-30 |
| gear ratio range | 3.98-106.38 | 4.64-131.87 | 4.69-145.14 | 5.2-144.79 | 7.24-192.18 | 7.21-197.37 |
| Mamax Gear unit(Nm) | 200 | 400 | 600 | 820 | 1550 | 2700 |
| Gear unit size | K97 | K107 | K127 | K157 | K167 | K187 |
| Motor Power(KW) | 0.75-37 | 2.2-45 | 5.5-90 | 9.2-200 | 9.2-200 | 9.2-200 |
| gear ratio range | 7.54-176.05 | 7.35-143.47 | 8.68-146.07 | 12.65-150.41 | 17.34-164.50 | 17.18-179.86 |
| Mamax Gear unit(Nm) | 4300 | 8000 | 13000 | 20000 | 35000 | 53000 |
| Gear unit size | K19 | K29 | K39 | K49 | ||
| Motor Power(KW) | 0.12 - 1.1 | 0.12 - 2.2 | 0.12 - 4 | 0.12 - 7.5 | ||
| gear ratio range | 4.5 - 58.68 | 3.19 - 71.93 | 2.81 - 58.24 | 4.00 - 75.20 | ||
| Mamax Gear unit(Nm) | 80 | 130 | 300 | 500 | ||
▶▶▶Features
☆Helical-bevel gear units (two and three stages)
•High efficiency
•Gearing with high fatigue strength
•Long, maintenance-free service life
•Can be combined with our complete motor portfolio
☆Sizes K..37 to K..187 (three stages)
•Double gear units for very low output speeds also available
•Reduced backlash variant
•Available variants:
•Foot- or flange-mounted
•B5 or B14 flange-mounted
•Solid or hollow shaft
•Hollow shaft with keyed connection, shrink disk, splined hollow shaft, or TorqLOC®

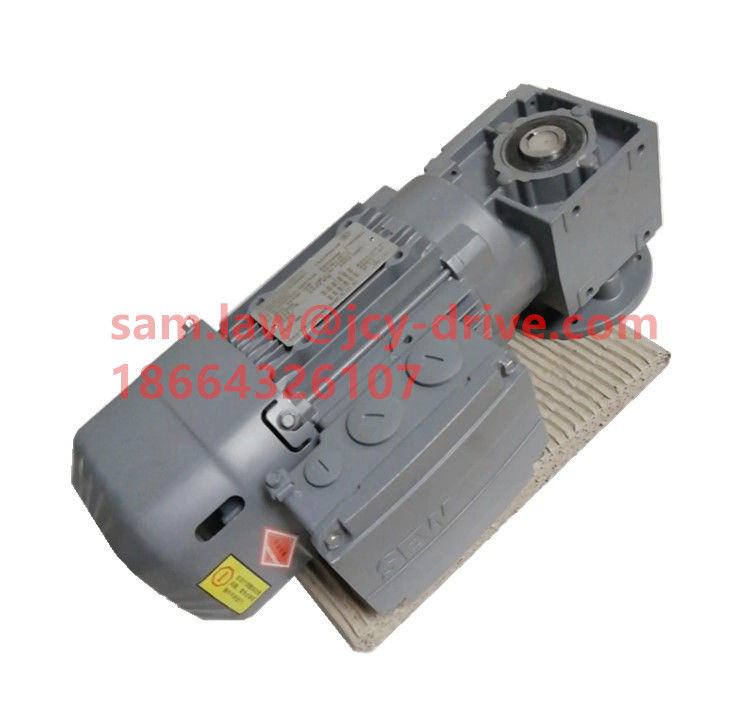

| Catalog designation | KAF67DRN132S4BE11/AL |
| Product | Bevel-helical gearmotors K..DRN.. (IE3) |
| Rated motor speed [1/min] | 1461 |
| Output speed [1/min] | 76 |
| Overall gear ratio | 19.30 |
| Output torque [Nm] | 690 |
| Service factor SEW-FB | 1.10 |
| Mounting position | M1A |
| Base / top coat | 7031 Blue gray (51370310) |
| Position of connector/terminal box [°] | 0 |
| Cable entry/connector position | X |
| Hollow shaft [mm] | 40 |
| Design type | B5 flange-mounted design with hollow shaft |
| Permitted output overhung load with n=1400 [N] | 3150 |
| Lubricant quantity 1st gear unit [Liter] | 1.1 |
| Flange diameter [mm] | 250 |
| Flange | 250 |
| Motor power [kW] | 5.5 |
▶▶▶ SEW K series Helical-bevel gearmotors
Three-stage bevel gear - bevel gear with high output torque, hollow or solid shaft, flange, footing or torque arm mounting
Transmission efficiency up to 98%, small size, light weight, low vibration, low noise
out speed (rpm): 0.1rpm - 522 rpm
Torque range(Nm)/Power range(KW): 200Nm - 50,000 Nm/ 0.12KW - 200 kW
▶▶▶FAQ
Q: Can you print other colors?
A:Yes. Customized color can be printed on the gear motor according to your requirements.
Q: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to accept trial order for quality testing.
