| Place of Origin | CHINA |
| Brand Name | SEW |
| Certification | CE/3C |
| Model Number | FA37DRN80M4 |
▶▶▶Description:
Parallel-shaft gearmotors
The parallel-shaft gearmotors of the series F..DR.. are perfect for all your design-related applications where you rely on space-saving components. They provide optimum installation conditions thanks to their slim design.
High-torque drive: Parallel-shaft helical gear unit and performance-optimized AC motor
| F series Parallel-shaft gearmotors ✪●✪ Product size&Technical data |
||||||
| Gear unit size | F27 | F37 | F47 | F57 | F67 | F77 |
| Motor Power(KW) | 0.12-3 | 0.12-3 | 0.12-3 | 0.12-7.5 | 0.12-7.5 | 0.12-15 |
| gear ratio range | 4.16-140.74 | 3.77-128.51 | 4.99-190.76 | 5.18-199.70 | 3.97-228.99 | 4.28-130.42 |
| Mamax Gear unit(Nm) | 130 | 200 | 400 | 600 | 820 | 1500 |
| Gear unit size | F87 | F97 | F107 | F127 | F157 | |
| Motor Power(KW) | 0.25-30 | 0.75-37 | 2.2-55 | 5.5-90 | 9.2-200 | |
| gear ratio range | 4.12-270.68 | 3.87-102.16 | 5.03-254.4 | 4.66-170.83 | 11.92-267.43 | |
| Mamax Gear unit(Nm) | 3000 | 4300 | 7840 | 12000 | 20000 | |
▶▶▶Features
Parallel-shaft helical gear units
•Slim design for limited installation space
•Also available with reduced backlash
•Available variants:
•Foot- or flange-mounted
•B5 or B14 flange-mounted
•Solid or hollow shaft
•Hollow shaft with keyed connection, shrink disk, splined hollow shaft, or TorqLOC®

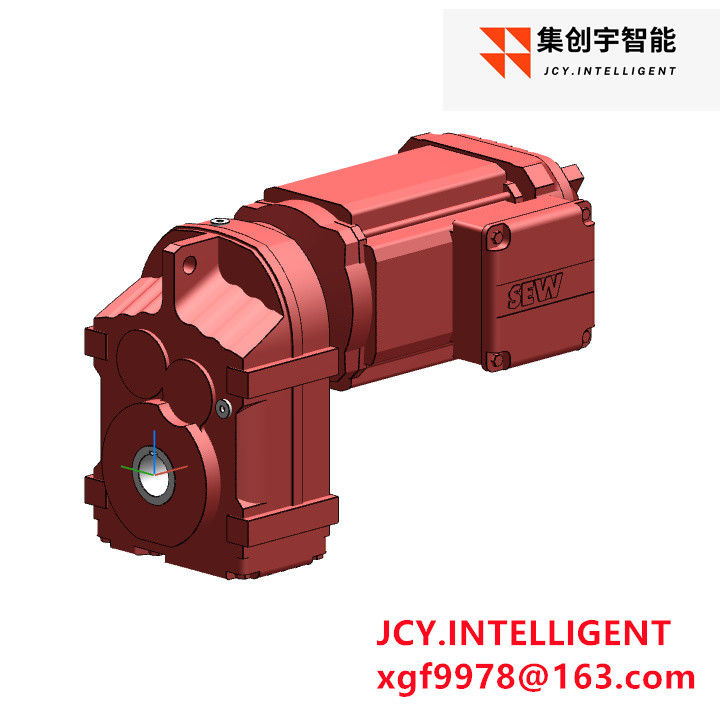

| Catalog designation | FA37DRN80M4 |
| Product | Parallel-shaft helical gearmotors F..DRN.. (IE3) |
| Rated motor speed [1/min] | 1440 |
| Output speed [1/min] | 100 |
| Overall gear ratio | 14.33 |
| Output torque [Nm] | 71 |
| Service factor SEW-FB | 2.80 |
| Mounting position | M1 |
| Base / top coat | 7031 Blue gray (51370310) |
| Position of connector/terminal box [°] | 0 |
| Cable entry/connector position | X |
| Hollow shaft [mm] | 30 |
| Design type | Hollow shaft |
| Permitted output overhung load with n=1400 [N] | 4930 |
| Lubricant quantity 1st gear unit [Liter] | 0.95 |
| Motor power [kW] | 0.75 |
| Motor voltage [V] | 230/400 |
| Frequency [Hz] | 50 |
| Rated current [A] | 3.05 / 1.75 |
| Cos Phi | 0.74 |
| Thermal class | 155(F) |
| Motor protection type | IP55 |
| Mass moments of inertia (referring to the input side) [10⁻⁴ kgm²] | 26.20 |
| Weight [kg] | 28.70 |
▶▶▶ SEW reducer F series Parallel-shaft gearmotors
Simple, slim shape, hollow or solid shaft, flange, footing or torque arm mounting
Transmission efficiency up to 98%, low vibration, low noise
out speed (rpm): 0.1rpm - 752 rpm
Torque range(Nm)/Power range(KW): 130Nm - 18,000 Nm/ 0.12KW - 200 kW
F type:F27,F37,F47,F57,F67,F77,F87,F97,F107,F127,F157
FA type:FA27,FA37,FA47,FA57,FA67,FA77,FA87,FA97,FA107,FA127,FA157
FF type:FF27,FF37,FF47,FF57,FF67,FF77,FF87,FF97,FF107,FF127,FF157
FV type:FV27,FV37,FV47,FV57,FV67,FV77,FV87,FV97,FV107,FV127,FV157
FA-B type:FA27B,FA37B,FA47B,FA57B,FA67B,FA77B,FA87B,FA97B,FA107B,FA127B,FA157B
FH-B type:FH27B,FH37B,FH47B,FH57B,FH67B,FH77B,FH87B,FH97B,FH107B,FH127B,FH157B
FV-B type:FV27B,FV37B,FV47B,FV57B,FV67B,FV77B,FV87B,FV97B,FV107B,FV127B,FV157B
